User Guide

This page walks through the Python API in depth. For the command-line tool, see Getting Started.

Want one runnable script instead?

The repository ships example_usage.py (also viewable on GitHub), a single end-to-end tour that exercises every public feature in order — structure loading, point-group determination, character tables, the HTML/LaTeX exporters, the structure generator, and the 3-D viewer. It reads from the bundled sample molecules, so it runs as-is straight after pip install pyrrhotite:

python example_usage.py

The walkthrough below explains each piece it uses.

How the pieces fit together

Before diving into each piece individually, here's how the main objects relate to one another:

flowchart LR
    XYZ[".xyz file"] --> S["Structure"]
    S --> SYM["Symmetry"]
    SYM --> PG["PointGroup"]
    SYM --> OM["OperationManager"]
    PG --> CT["Character table"]
    CT --> EXP["HTML / LaTeX export"]
    PG --> BF["Basis functions"]
    S --> VIS["3-D visualizer"]

Structure loads and re-centres the atoms from an .xyz file — or is built synthetically by generate_idealized_structure.
Symmetry runs the detection pipeline described in Algorithm & Supported Groups and exposes the result as a PointGroup, plus an OperationManager holding every individual symmetry operation that was found.
A PointGroup knows its character table and basis functions, and can be exported to HTML/LaTeX — or obtained directly by name, with no Structure at all (see Character tables for any group).
A Structure can also be handed straight to the 3-D visualizer, independently of Symmetry.

Point group determination

This is the core workflow: take a geometry and find its point group.

PythonCommand line

from pyrrhotite import Structure, Symmetry

s = Structure("ammonia.xyz")     # path to an .xyz file (str or pathlib.Path)
sym = Symmetry(s)                # runs detection on the loaded Structure

pg = sym.point_group
print(pg.label.name)        # "C3v"
print(pg.order)              # 6  (total number of symmetry operations)

pyrrhotite ammonia.xyz       # prints the detected point group

Inputs. Structure(...) takes the path to a standard .xyz file — see Input format for the expected layout. The molecule does not need to be pre-centred: Structure loads the atoms and coordinates and automatically re-centres them on the centre of mass, which is where symmetry detection expects the origin to be. Symmetry(...) then takes that Structure and runs the full detection pipeline, exposing the result as a PointGroup.

Why it's useful. The PointGroup you get back is the gateway to everything else on this page — its character table, irreps, and basis functions — so a single Symmetry(Structure(...)) call is usually the first thing you write.

Want to see why a group was assigned?

sym.operation_manager gives you every individual symmetry operation that was detected, along with its axis and a numerical error estimate — see Symmetry operations below.

Character tables

A character table is a small grid that summarises everything the point group tells you about the molecule: which combinations of atomic orbitals are allowed to mix, and which vibrations/rotations show up in infrared or Raman spectra.

Once you have a PointGroup (pg = sym.point_group from the section above), you can print its table or read the underlying data directly.

PythonCommand line

# Print with rich formatting (falls back to plain if rich is not installed)
pg.print_character_table()

# Plain text — no colour/box-drawing, good for logs and piping
pg.print_character_table(plain=True)

# ε-notation for cyclic / Sn groups
pg.print_character_table(complex=True)

# Access the data directly
print(pg.irreps)             # list of IrrepLabel objects
print(pg.characters)         # list[list[float]] — [irrep][operation class]
print(pg.unique_operations)  # conjugacy classes (excluding E)

pyrrhotite -ct ammonia.xyz             # character table
pyrrhotite -ct --plain ammonia.xyz     # force plain-text output
pyrrhotite -ct --complex ammonia.xyz   # ε-notation

Inputs. print_character_table() takes two optional booleans: plain=True suppresses the rich formatting (use it when output is going to a file, a log, or another program), and complex=True switches to ε-notation (see the note below). The pg.irreps, pg.characters, and pg.unique_operations attributes expose the same data as plain Python objects when you need the values programmatically rather than printed.

ε-notation

Cyclic groups (Cₙ, Sₙ, …) with n > 2 have complex-valued irreducible representations. print_character_table(complex=True) displays these using ε = e^(2πi/n) notation instead of expanding them numerically — the conventional form used in most textbooks and reference tables.

Character tables for any group — no XYZ needed

You can also generate a character table for a named point group without loading any molecule. This works for all 18 Schoenflies classes — the seven axial families (Cn, Cnh, Cnv, Sn, Dn, Dnh, Dnd) are generated analytically for any order, and the rest (cubic, icosahedral, linear, and the low-symmetry groups) come from a built-in table.

PythonCommand line

from pyrrhotite.character_tables import (
    get_or_generate_point_group,
    print_character_table_for,
)

print_character_table_for("D4h")

pg = get_or_generate_point_group("C12v")
pg.print_character_table()

These two functions sit at different levels:

print_character_table_for(name) is a fire-and-forget convenience — it looks the group up (or generates it) and prints the table straight to stdout, returning nothing. Use it when you just want to see the table.
get_or_generate_point_group(name) returns the PointGroup object, so you can inspect pg.irreps / pg.characters, hand it to the HTML/LaTeX exporters, or call pg.print_character_table(complex=True). Use it when you want the data, not just a printout. (Axial groups outside the hardcoded list are generated on the fly; the rest come from the built-in table — hence "get or generate".)

So print_character_table_for("D4h") is just shorthand for get_or_generate_point_group("D4h").print_character_table().

pyrrhotite -g C3v
pyrrhotite -g D6h --plain
pyrrhotite -g C12v   # arbitrary order — generated on the fly

Exporting character tables (HTML / LaTeX)

For reports, slides, or web pages, character tables can be exported directly to HTML or LaTeX:

PythonCommand line

from pyrrhotite.character_tables import format_html, save_html, format_latex, save_latex

print(format_html(["C3v", "D6h"]))          # HTML string, ready to embed in a page
save_html(["Oh"], "oh_table.html")          # write a standalone HTML file

print(format_latex(["C3v", "D6h"]))         # LaTeX string (requires \usepackage{booktabs,amsmath})
save_latex(["Oh"], "oh_table.tex")

python -m pyrrhotite.character_tables.html_formatter C3v D6h
python -m pyrrhotite.character_tables.html_formatter Oh --save
python -m pyrrhotite.character_tables.latex_formatter Oh D4h --save tables.tex

Inputs. Every exporter takes a list of group names (e.g. ["C3v", "D6h"]) rather than a single string, so you can render several tables in one call. The format_* functions return the markup as a string (handy for embedding into a larger document); the save_* functions write it to the file path you give and return nothing. The module-script form (python -m ...) is the command-line equivalent: pass group names as arguments and --save to write to disk. These work for any of the 18 classes, with no .xyz file or Structure needed.

The HTML is fully self-contained (it carries its own <style> block), so it drops straight into any page. Here is the actual, unedited output of format_html(["C3v"]), rendered live:

Character table of C_3v
C_3v	E	2 C₃	3 σ_v
A₁	1	1	1
A₂	1	1	-1
E	2	-1	0

Self-contained, light-styled tables

The exported table ships with its own colours (a light grey header and zebra striping), so it looks identical wherever you embed it — which also means it keeps that light styling even on this page in dark mode. That is by design: the export is meant to be portable into reports and slides, not to inherit a host site's theme.

Generating idealized structures

For testing or demonstration, pyrrhotite can build an idealized Structure that has, by construction, a requested axial point-group symmetry — a ring (or combination of rings) of placeholder atoms arranged as a Cn, Cnh, Cnv, Sn, Dn, Dnh, or Dnd structure for any supported order n.

Plausible geometry, not just placeholder points

The geometry of each family is modelled on a real molecule with that symmetry (e.g. ammonia-like apex+ring substituents for Cnv, benzene's ring+substituent for Cnh, ferrocene's metal-hub sandwich for Dn/Dnh/Dnd/Sn). Element choices roughly match each atom's bonding degree (H for degree 1, O for degree 2, N for degree 3, C for degree 4, S for degree 5-6, and a metal-like hub for higher degrees), so the generated structure also looks reasonable in the 3-D viewer.

A geometric illustration, not a chemistry tool

The generator's only guarantee is that the resulting arrangement of points has the requested point-group symmetry. The choice of elements and the bonds drawn between them are picked purely so the structure looks like a plausible molecule — they do not correspond to real, synthesisable compounds, realistic bond lengths, or valid valences. Most generated structures are not real molecules and should not be read as chemical claims.

Supported families: Cn, Cnh, Cnv, Sn (even orders), Dn, Dnh, Dnd. Cubic, icosahedral, linear, and low-symmetry groups are not generated.

High-order limits. Each family is built from one or two rings of n atoms, so the rings get geometrically crowded as n grows — at large n the fixed-radius spheres can visually touch and the bonds get hard to read. For the hub families (Dn/Dnh/Dnd/Sn) the hub element is chosen adaptively — the smallest atom (Cl → Fe → Cs) that still bonds to the ring at its natural radius — so small n gets a compact hub rather than a giant caesium sphere, escalating to caesium only for large n; the ring radius is then capped so that hub stays bonded. These are tuned for the supported range up to n = 20. Beyond that the visual quality degrades and detection tolerances tighten (see Algorithm & Supported Groups); treat very high orders as schematic.

PythonCommand line

from pyrrhotite import generate_idealized_structure, write_xyz, Symmetry
from pyrrhotite.structure_generator import format_xyz

s = generate_idealized_structure("D12h")    # build an idealized D12h structure
print(Symmetry(s).point_group.label.name)   # "D12h"

print(format_xyz(s))                        # get it as XYZ text, no file needed
write_xyz(s, "d12h.xyz")                    # or write it straight to an .xyz file

pyrrhotite -g D12h --xyz                  # print the generated structure as XYZ to stdout
pyrrhotite -g D12h --xyz d12h.xyz         # save the generated structure as XYZ to a file
pyrrhotite d12h.xyz -v                    # then analyse the generated file as usual

Inputs. generate_idealized_structure(...) takes a group name string from one of the supported axial families (see the box above) — the order n is read straight from the name, so "D12h" builds a 12-fold structure. It returns a normal Structure, so you can feed it straight back into Symmetry(...), format_xyz(...) (returns the XYZ text as a string), write_xyz(...) (writes it to a path), or the visualizer. Asking for an unsupported group or order raises a ValueError rather than silently producing a wrong structure.

To preview a generated structure without writing it to disk first, use visualize_idealized_structure (requires pip install 'pyrrhotite[vis]'):

PythonCommand line

from pyrrhotite import visualize_idealized_structure

visualize_idealized_structure("D9d")                  # opens the 3-D viewer
visualize_idealized_structure("D9d", show_labels=True) # overlay element labels

pyrrhotite -g D9d --visualize             # preview the generated structure directly
pyrrhotite -g D9d -vis -l                 # ... with element labels shown

Round-trip testing

Generating a structure for a group and then immediately running Symmetry(...) on it (as in the snippet above) is a good way to sanity-check that detection recovers the group you asked for — example_usage.py (section 14) has a runnable demo covering all seven axial families, custom radius/height/element, and the error cases for unsupported groups/orders.

Rotor classification and principal axes

Before searching for symmetry operations, pyrrhotite classifies the molecule's overall shape from its moments of inertia — this narrows down which symmetry elements are even possible. These are read straight off the Symmetry object you already built; no extra arguments are involved.

PythonCommand line

print(sym.rotor_class)            # RotorClass.ProlateSymmetricTop

pm = sym.principal_moments        # np.ndarray shape (3,) — Ia ≤ Ib ≤ Ic in u·Å²
axes = sym.principal_axes         # np.ndarray shape (3, 3) — eigenvectors as columns
cart = sym.cartesian_axes         # 3×3 matrix [x | y | z] in the conventional frame

pyrrhotite -m ammonia.xyz         # principal moments + Cartesian axes
pyrrhotite -v ammonia.xyz         # rotor class (with the operation list)

Why it's useful. The rotor class (spherical / symmetric / asymmetric top, linear, …) tells you at a glance what kind of molecule you have, and it's the first thing the detection pipeline computes — so inspecting it is a quick way to understand why a given set of axes was searched for.

Symmetry operations

Every symmetry operation found on the molecule (rotation axes, mirror planes, inversion centre, improper rotation axes) is available individually, with its axis and a numerical error estimate showing how well the molecule actually matches that symmetry.

PythonCommand line

manager = sym.operation_manager

for op in manager.operations:
    print(op.label.short_name)   # "C3", "C3^2", "σv", "i", …
    print(op.axis)                # unit-vector axis / plane normal
    print(op.error)               # worst-case atom mis-mapping distance (Å)

manager.proper_rotations         # filtered views onto the same operations
manager.improper_rotations
manager.reflections
manager.inversions

pyrrhotite -v ammonia.xyz        # list every detected operation
pyrrhotite -od ammonia.xyz       # ... plus the atoms lying on each element

Why it's useful. Where point_group gives you the single summary label, the OperationManager lets you drill into the individual elements behind it — useful for verifying a borderline assignment, or for picking out (say) just the mirror planes via the manager.reflections filtered view. The op.error field (explained in the note below) is your handle on how cleanly each operation holds.

Reading op.error

op.error is the worst-case distance (in Å) by which any atom misses its expected mapped position under that operation. A small, uniform error across all operations of a detected group is normal numerical noise; a much larger error on one operation than the others can indicate a slightly distorted geometry that's still close enough to pass the 10% tolerance.

Basis functions

Basis functions tell you, for each irreducible representation (irrep), which x, y, z coordinates, rotations, or quadratic combinations (x², xy, …) transform the same way — useful for working out IR/Raman selection rules and orbital symmetries.

PythonCommand line

from pyrrhotite.point_groups.basis_functions import compute_basis_functions

basis = compute_basis_functions(pg)   # pg = any PointGroup
# Returns dict[irrep_name, {"linear": [...], "quadratic": [...]}]
for irrep, funcs in basis.items():
    print(irrep, funcs["linear"], funcs["quadratic"])

pyrrhotite -ct ammonia.xyz       # the basis functions appear in the table's
                                 # "Lin/Rot" and "Quadratic" columns

Inputs. compute_basis_functions(...) takes a PointGroup — whether it came from a Symmetry analysis or from get_or_generate_point_group(name) — and returns a dictionary keyed by irrep name. On the command line the same information is rendered as the right-hand columns of the -ct character table, so reach for the Python form only when you need the assignments as data.

Pretty-printing helpers

Everything above is exposed as plain Python attributes so you can format it however you like. For quick, readable output while exploring in a shell or notebook, pyrrhotite.display bundles a few ready-made printers that take the objects you already have (a Structure, an operation list, a PointGroup) and print a tidy table. These are a Python convenience — the command-line tool covers the same ground through its -v, -ct, and -od flags, so there's no separate CLI for them:

from pyrrhotite.display import (
    print_bond_pairs,              # bonded atom pairs, e.g. "N0 — H1"
    print_ops_with_atoms,          # each operation + the atoms on its axis/plane
    print_basis_functions,         # irrep → linear/rotational & quadratic basis
    print_char_table_programmatic, # character table built from the raw pg arrays
)

print_bond_pairs(s)                                       # s = a Structure
print_ops_with_atoms(sym.operation_manager.operations, s)
print_basis_functions(pg)                                 # pg = a PointGroup
print_char_table_programmatic(pg)

Convenience wrappers, not a separate data source

These don't compute anything new — they're thin formatters over data that's already on the objects (s.calculate_bond_pairs(), pg.characters, pg.irreps, …). Use them for a quick look; reach for the underlying attributes when you need the values programmatically. They live under pyrrhotite.display rather than the top-level package namespace. See the API reference for the individual signatures, and example_usage.py (sections 1, 4, 6, 7) for each one in context.

Element data

A small lookup table of element properties (symbol, atomic number, mass) used internally for centre-of-mass centring and element colouring, exposed in case it's handy in your own scripts. This is a Python-only helper — there is no command-line equivalent.

from pyrrhotite.periodic_table import get_element, get_atomic_number

el = get_element(6)            # accepts an atomic number ...
print(el.symbol)   # "C"
print(el.mass)     # 12.011

n = get_atomic_number("Fe")    # ... or look a number up from a symbol -> 26

3-D visualizer

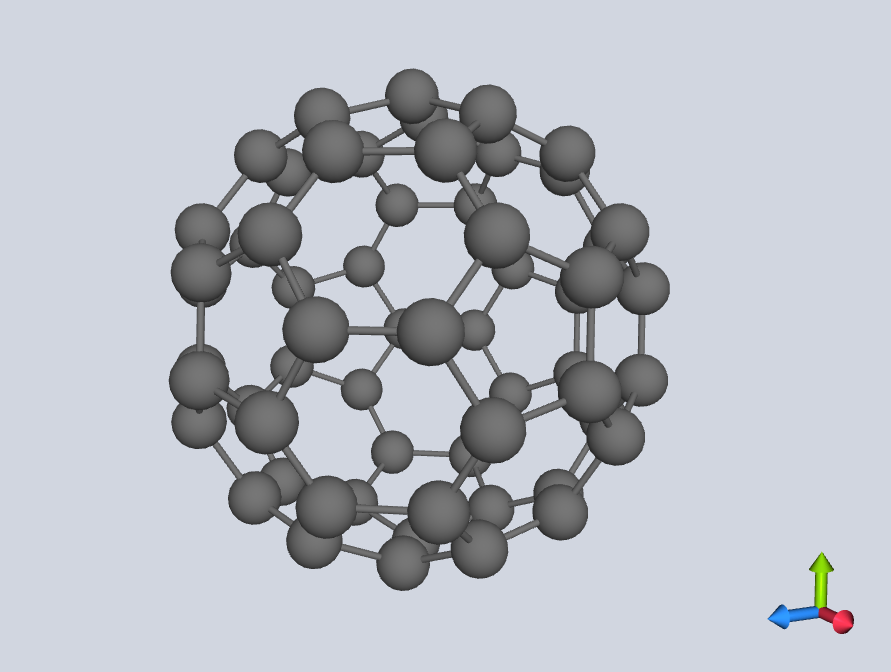

pyrrhotite includes a small interactive viewer for checking what the molecule actually looks like before or after analysis. It draws atoms as colour-coded spheres, bonds as cylinders, and a small red/green/blue arrow gizmo in the corner showing the x/y/z axes.

PythonCommand line

from pyrrhotite import Structure, visualize

s = Structure("ammonia.xyz")
visualize(s)                      # opens a window
visualize(s, show_labels=True)    # also overlay element symbols (N, H, H, H, ...)

pyrrhotite ammonia.xyz --visualize   # analyse, then open the viewer
pyrrhotite ammonia.xyz -vis -l       # ... with element labels shown

Inputs. visualize(...) takes a Structure (loaded from a file or generated) and an optional show_labels flag. Controls: left-click and drag to rotate the molecule, scroll to zoom.

This requires the optional vis dependencies (PyQt6, PyOpenGL, pyrr):

pip install 'pyrrhotite[vis]'

If they aren't installed, visualize() raises an ImportError with instructions instead of crashing.

Note

Unlike Luuk Kempen's original visualizer, this viewer does not (yet) draw the detected symmetry elements (axes, mirror planes) on top of the molecule — it shows only the molecule itself, the axis gizmo, and optional atom labels.

Sample molecules

For learning and quick experiments, pyrrhotite bundles 32 .xyz files covering all major point-group families (water, ammonia, benzene, ferrocene, buckminsterfullerene, ...). These are exposed through a few convenience functions:

PythonCommand line

from pyrrhotite import (
    list_sample_molecules,
    load_sample,
    analyse_sample,
    visualize_sample,
    show_character_table_sample,
)

list_sample_molecules()        # ['E-hex-3-ene', 'adamantane', 'ammonia', ...]

s = load_sample("benzene")     # returns a Structure
analyse_sample("benzene")      # prints point group + rotor class
show_character_table_sample("benzene")   # prints the character table

visualize_sample("buckminsterfullerene")  # opens the 3-D viewer (requires [vis])
analyse_sample()               # no name -> picks a random sample molecule

# The samples ship as plain .xyz files, so the normal CLI works on them too:
pyrrhotite src/sample_molecules/benzene.xyz -v -ct
pyrrhotite src/sample_molecules/*.xyz        # analyse all of them at once

Inputs. Each helper takes a sample name (one of the strings returned by list_sample_molecules()) — not a file path. load_sample returns a Structure you can use like any other; analyse_sample, show_character_table_sample, and visualize_sample are one-call shortcuts that load and act on the sample. Calling analyse_sample() with no name picks one at random. The Python helpers exist purely so you don't have to know where the bundled files live; on the command line you point pyrrhotite at the .xyz files directly.

Good starting points for each rotor class

analyse_sample() with no argument picks a random molecule — handy for quickly seeing a variety of point groups and rotor classes without sourcing your own .xyz files. Combine it with visualize_sample(...) to see the geometry that produced a given result.

Next steps

Examples Gallery

See the API above applied across point-group families, with output and rendered character tables.

Browse the gallery
Example Script

example_usage.py — every feature on this page, wired together into one runnable tour.

Read the script
API Reference

The exact signatures, parameters, and return types for every public function and class.

Open the reference
Algorithm & Supported Groups

How detection works under the hood, and the full list of supported groups.

How it works
